70cm 16 Element Phased Array

70cm, 16 Element Phased Array - Nov 1996

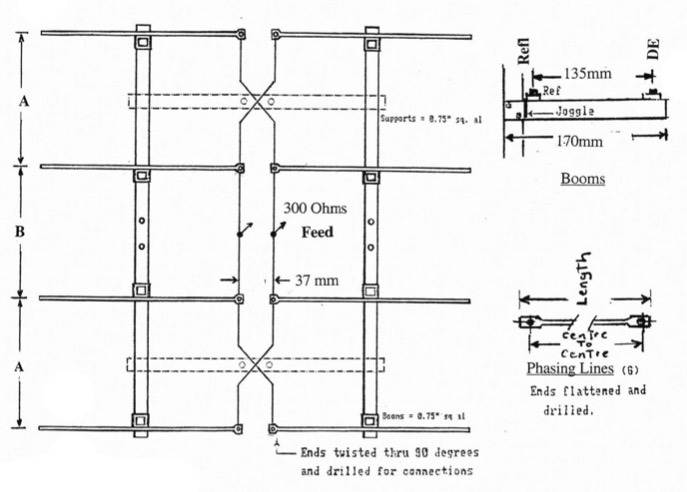

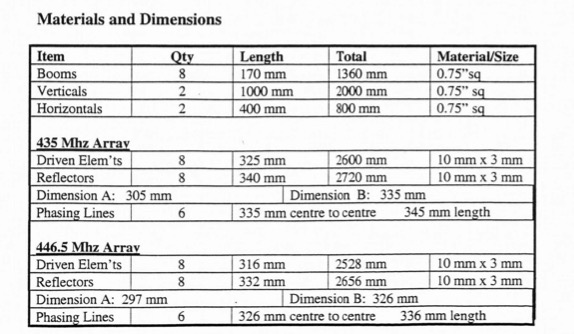

Following the details given in the October issue of QUA for the 2M phased array, below are construction details of a phased array for 70cm. As with the 2M array, this design is by VK2ZAR from the Central Coast Radio Club and appriate acknowledgment and thanks is given for permission to reproduce this in QUA. Thanks also go to VK2ARI and VK2HAY for their part in arranging the article. Dimentions for two versions are provided, one for FM(435 MHz) and the other for ATV (446.5 MHz).
